 Head Dredging Aquatic Weed Harvester1) Product Description Head Dredging aquatic weed harvesters are usually used in river, lake, reservoir and coasts for cutting, collecting, storing and transporting water weeds and floating garbage. The equipment can work automatically and can save much labor force for its

Featured Products

 Head Dredging Aquatic Weed Harvester

1) Product Description

Head Dredging aquatic weed harvesters are usually used in river, lake, reservoir and coasts for cutting, collecting, storing and transporting water weeds and floating garbage. The equipment can work automatically and can save much labor force for its high efficiency. The products have many advantages, such as: automatic, easy to operate and maintain, abrasive stainless chain, integrated with cut, collection, salvage and discharge, etc.   Its characteristics of simple structure, flexible movement and easy operation make it an important environment friendly machine in water cleaning.Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat

2) Technical Specifications

ModelHD-WH40HD-WH60HD-WH100HD-WH150
Loa(L*w*h)8*3.7*1.7m10.5*4.4*1.7m13*4.4*2.6m15*4.6*3.7m
Working Capacity1000m2/h2000m2/h3000m2/h4000m2/h
Mowing Depth0.6m0.6m0.8m0.8m
Mowing Width1m1m1-1.2m1-2m
Unloading Height1.5m2m2.5m2.5m
Loading Capacity3m34m37-11m310-20m3
Fuel Consumption3L/H6L/H6L/H8L/H
Speed0-5km/h0-7km/h0-8km/h0-8km/h

 HD-WH100

ItemHD-WH40ItemHD-WH40
Loa(L*w*h)13*4.4*2.6mEngine Power45kw
Hull(L*w*h)7*3*1mFuel Consumption6L/H
Working Capacity3000m2/hFuel Tank200L
Draught0.5mSpeed0-8km/h
Mowing Depth0.8mPropulsionPaddle Wheel
Mowing Width1-1.2mHydraulic tank360L
Unloading Height2.5mElectric Installation24V
Loading Capacity7-11m3Crew1 Operator and 1 Assistant
Engine BrandWeichaiWeight8mt
*The above parameters are for reference. The product is customized according to customers' requirements.

Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat

3) Main Features
Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat
Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat


4) Spare Parts
Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat
Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat


1. vertical knives
2. horizontal knives
3. wheel knives
4. side collector


5) Packing & Delivery

Packaging Details: standard package for export
Port: Qingdao
Delivery Time: within 5 days after receiving all the money

6)Company Introduction


Head Dredging Heavy Industry Co., Ltd. is a company specialized in producing  dredgers, aquatic weed harvesters, gold mining machines and greenhouses. Head Dredging aims to meet the needs of our customers by providing competitive and high-quality services , such as dredging technology, water cleaning, mineral separation, etc.
This product have many series, such as aquatic weed harvester, trash skimmer/hunter, transportation boat and other water surface products.
Our company take integrity as the foundation of the development and stand firmly in the market by accurate market positioning as well as excellent after-sales service. Our products are successfully exported to Indonesia, Malaysia, India, South Africa, Ethiopia, Vietnam, Mongolia, etc.

7) Work Shop

Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat

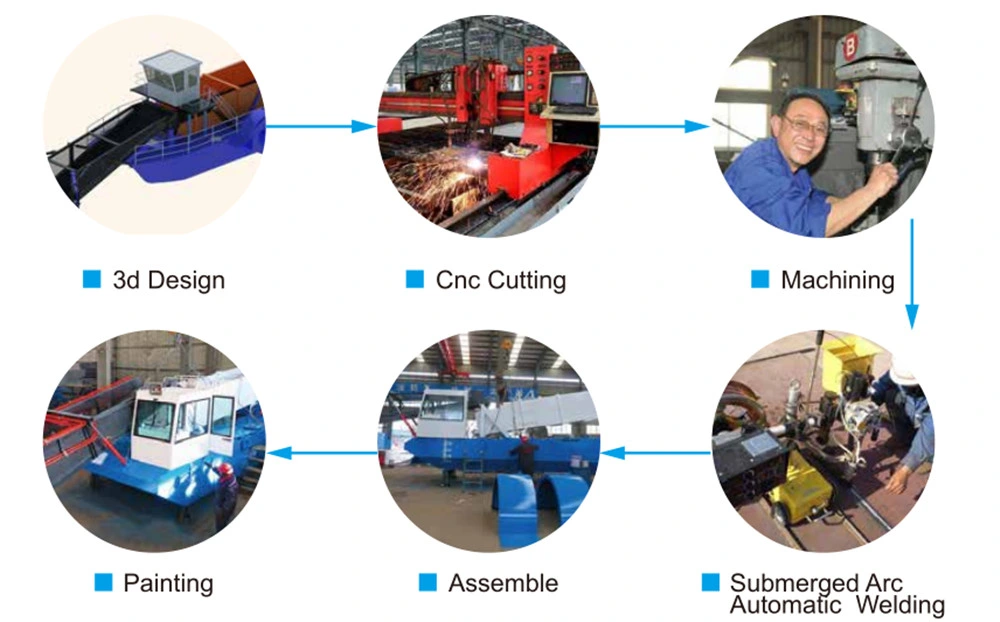

8) Production Line
Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat

9) Case


CaseIndiaEthiopiaCameroonSingaporeIndiaSouth Africa
ModelHD-WH150HD-WH150HD-WH100HD-WH100HD-WH 150HD-WH150
Quantity2 Sets1 Set1 Set1 Set2 Sets2 Sets
ApplicationCleaning the Rubbish and WeedCleaning Aquatic WeedCleaning Water HyacinthCleaning Aquatic WeedCleaning Aquatic WeedCleaning Aquatic Weed

Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat
10) Certificates

Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat

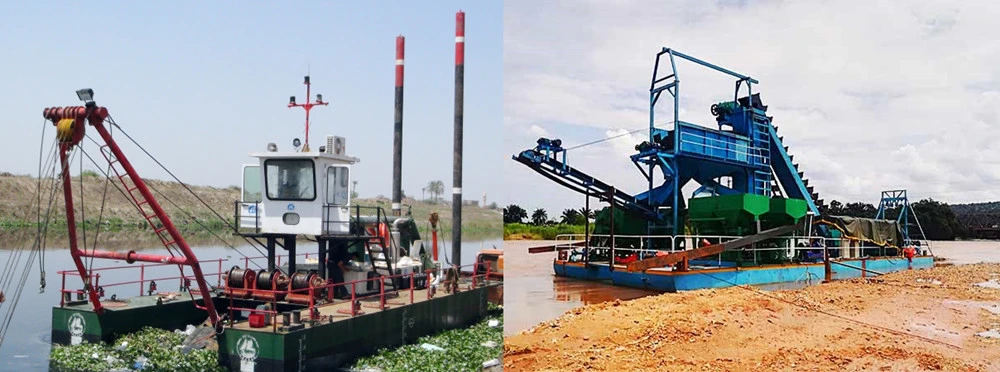

11) Other Products


Water Surface Cleaning Ship / Garbage Collection Boat/Skimmer Boat

12) FAQ

How to assemble the machine
Our technicians are responsible for installing the machine in the field. We also offer training services

After-sales service
If there are any problems during the operation of the machine in the warranty period, we will exchange parts for free. All kinds of questions are available after the purchase, please fell free contact us.
