Supermarket gate, electric swing gate, supermarket gate automatic swing gate

Automatic 304 stainless steelaccess control  NFC/RFID/face recognition smart swing barrier gate Dimension1400*185*1020mmPass width600mm(Can be customized 900mm)Infrared sensor6 pairsCommunication interfaceDry contact / RS232Passing rate35-45persons/minCase MaterialSS304 stainless steel,acrylicMaterial thickness1.5mm+1.

Featured Products

Automatic 304 stainless steelaccess control  NFC/RFID/face recognition smart swing barrier gate

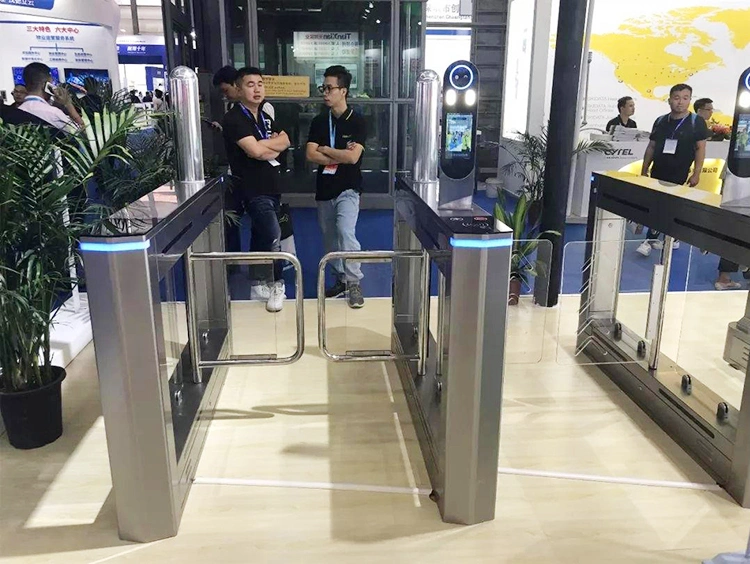

Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
Dimension1400*185*1020mm
Pass width600mm(Can be customized 900mm)
Infrared sensor6 pairs
Communication interfaceDry contact / RS232
Passing rate35-45persons/min
Case MaterialSS304 stainless steel,acrylic
Material thickness1.5mm+1.2mm
Passage directionSingle directional / Bi-directional
Opening methodID / IC card reader,infrared induction
MotherboardOne-driving-one
MCBF>=9million times
Power30-60w
Working environmentIndoor / Outdoor
Working humidity<=90%
Working temperature'-20ºC~75ºC
Power inputAC220±10% 50Hz
MechanismDC24V Brushless motor
Protection functionEncoder limit, electromechanical anti-collision, infrared anti-pinch, illegal intrusion infrared alarm
The swing gate realizes blocking and release by rotating and swinging. The materials are commonly used in stainless steel, plexiglass, tempered glass, and some also use metal plates outsourcing special flexible materials (to reduce the damage to pedestrians). It is mainly used for the management of entrances and exits. The usual application places only allow people to pass, or people who tow luggage, and people with disabilities. Considering that swing gates can achieve wider channel characteristics than wing gates. Most of the swing gate channels can be mixed with pedestrians, bicycles, mopeds, disabled vehicles and other non-motorized vehicles.
Features
1,Fault self-check and alarm prompt function, convenient for users to maintain and use;
2,Through the built-in small button on the main control board, the running status of the device can be programmed;
3,Mechanical structure, induction double anti-pinch function, when the swing arm is in the process of resetting, it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until reset), and the force is very small ( ≤2Kg);
4,Sound and light alarm function: including illegal entry and trailing alarm;
5,Anti-shock function, the swing arm is automatically locked when it does not receive the opening signal;
6,Swing lever (arm) synchronization function;
7,Automatic reset function. After opening the gate, if there is no pass within the specified time, the system will automatically cancel the user's permission to pass this time. The standard is automatic reset 5 seconds after opening;
8,The channel automatically opens after power off, and automatically closes after power on;
9,It can be connected to a variety of card readers, and can receive relay switch signals to work;
10,One-way or two-way control of personnel entry and exit;
11, Remote control and management can be realized directly through the management computer;

Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate

Shenzhen Zenidea Intelligent Technology Co., Ltd, a high-tech enterprise with 13 years experience specializing in the production of turnstiles and smart parking system. It is an enterprise integrating production, research and development, and sales. Obtained 30+ patent certificates. In the product production process, the product needs to go through 320 production processes, 12 quality inspection processes, and 72-hour aging process. In terms of software, we continue to optimize and upgrade standardized products and special customization requirements based on market application requirements and customer experience. We always insist on continuously innovating technology, and strive to create a global security industry boutique, to provide customers with better products.
Our production range includes tripod turnstiles, swing barrier gates, speed gates ,full height turnstiles, parking boom barrier and revolving doors which are widely used in subways, office building and other public area
> 7000m³ manufacturing center located in Shenzhen,China
> 9 R&D centers across China to provide timely and effective technical support
> 13 years of R & D and production experience
> 30+ Patents and various other related certificates (CE,RoHS,ISO9001,CNAS,IAF)
> Top 10 Security  Brands in China
> Appraised as a high-tech enterprise six consecutive years
> 20+ footprint,products sold to 20+ countries

Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
Supermarket Entrance Gate, Electric Swing Barrier Gate, Supermarket Gate Automatic Swing Gate
FAQ
1.How about your company's actual strength?
7000m3 manufacturing center located in Shenzhen,China
9 R&D centers across China to provide timely and effective technical support
13 years of R & D and production experience
30+ Patents and various other related certificates (CE,RoHS,ISO9001,CNAS,IAF)
Top 10 Security Brands in China
2.How do you do after-sale service?
Free lifetime technical support(video / picture / remote assistance)
24/7 technical online service
Free replacement of hardware damaged during the warranty period (except for human factors).
3.How about your package?
Seaworthy wooden case + Foam.
Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.
4.How about the lead time?
Stock products: 5-7 days
Out-of-stock products: According to the production schedule,12-20 days.
5.How about the payment method?
T/T , Western Union, PayPal...






Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
