Model | NE3/110 | NE5/100 | NE16/60 | NE16/100 | ||
Flow Rating | L/min | 120 | 120 | 120 | 120 | |
gpm | 31.7 | 31.7 | 31.7 | 31.7 | ||
Pressure Rating | MPa | 16.6 | 16.6 | 16.6 | 16.6 | |
psi | 2400 | 2400 | 2400 | 2400 | ||
Max.Pull | kN | 30 | 50 | 160 | 160 | |
US ton | 3.3 | 5.5 | 17.6 | 17.6 | ||
Max.Line Speed | m/min | 23 | 11 | 5.8 | 5.8 | |
ft/min | 73 | 36 | 19 | 19 | ||
Wire Rope Diameter | mm | 12.7 | 20.5 | 28 | 28 | |
in | 1/2 | 3/4 | 13/32 | 13/32 | ||
Rope storage | m | 110 | 100 | 60 | 100 | |
ft | 360 | 328 | 197 | 328 | ||
Size | mm | 810×490×500 | 880×520×710 | 1340×930×900 | 1520×930×900 | |
in | 32×19×20 | 35×21×28 | 52.8×36.6×35.4 | 59.5×36.6×35.4 | ||
Weight | kg | 490 | 490 | 1150 | 1250 | |
lb | 1080 | 1080 | 2530 | 2750 |

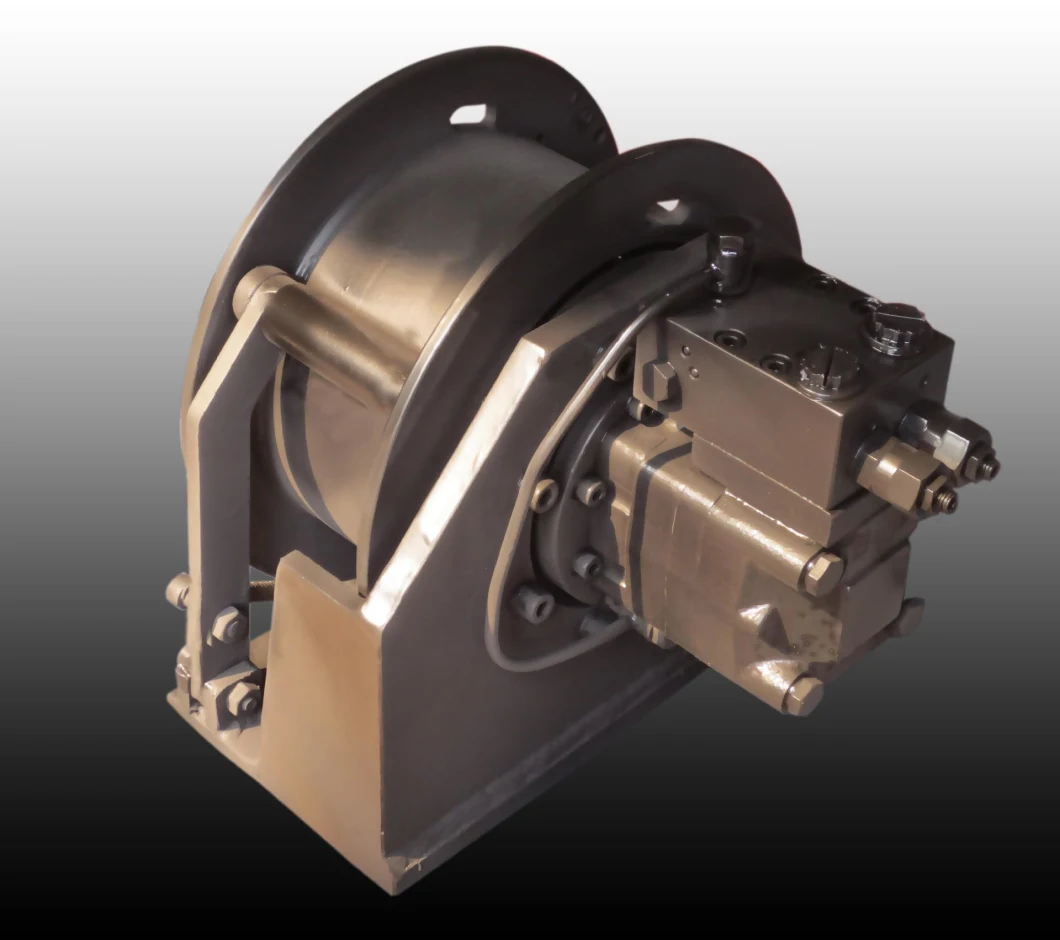

Hydraulic winch product features:
1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) low noise during operation;
4) good economic performance.
Nucrane series hydraulic vehicle recovery winches product of our company. Its a huge success with tow truck manufactures. We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at the final stage of gearbox. When we pull out the handle, the drum can rotate freely.
The power generated by the hydraulic motor is transferred to the drum by way of planetary gear units incorporated in the drum.
A range of accessories such as rope guides and pressure rollers are available on request.
Package and our workshop
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory of hydraulic winch.
Q: How long is your delivery time?
A: Generally it is 5-25 days if the goods is the standard dimension.
Q: Can you custom make the product?
A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order?
A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
